Hot Standby Router Protocol (HSRP)

Well...dah byk post cite psl g berjalan n wutever...so post kali ni sedikit ilmiah...^^

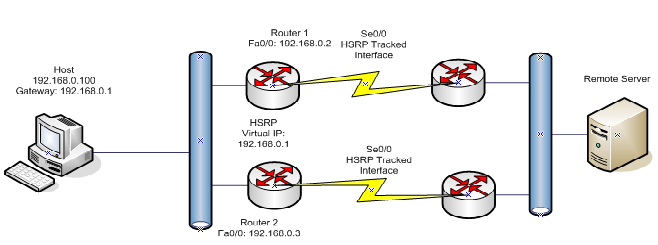

To setup HSRP on a pair of routers,
Router 1:
From the Interface Configuration Mode add the IP Address of the Interface

hsrp-router1#conf t

hsrp-router1(config)# int fa0/0

hsrp-router1(config-if)# ip address 192.168.0.2 255.255.255.0

Set the Virtual IP Address
Sets the Virtual IP Address for the interface where "1" is the HSRP group and "92.168.0.1" is the Virtual IP for the HSRP group.

hsrp-router1(config-if)# standby 1 ip 192.168.0.1

Enable Preempt
This is required to make the router from being a Standby Router to an Active Router when it finds the Active Router is down or if it has become the higher priority router in the group

hsrp-router1(config-if)# standby 1 preempt

Set Router Priority
The default priority is "100". We set here as "110" to make the Router 1 as active.

hsrp-router1(config-if)# standby 1 priority 110

Set Authentication String
This is an optional plain text 8 character string that can be used in the multicast "hello" packets to authenticate the HSRP group.

hsrp-router1(config-if)# standby 1 authentication LocalLAN

Set Timers
Sets the time period between the "hello" packets and the hold time before assuming an active router is down. Default is 3seconds and 10 seconds respectively.

hsrp-router1(config-if)# standby 1 timers 5 15

Track Interface
If you track interface to check link status then the following command will track an interface and when the tracked link is down, the active router will mark its priority low so as to allow a Standby router to take over.

hsrp-router1(config-if)# standby 1 track se0/0

Repeat the procedure altering the IP Address of the Local interface and the priority and the tracked interface.
Router 2:

hsrp-router2#conf t

hsrp-router2(config)# int fa0/0

hsrp-router2(config-if)# ip address 192.168.0.3 255.255.255.0

hsrp-router2(config-if)# standby 1 ip 192.168.0.1

hsrp-router2(config-if)# standby 1 preempt

hsrp-router2(config-if)# standby 1 priority 100

hsrp-router2(config-if)# standby 1 authentication LocalLAN

hsrp-router2(config-if)# standby 1 timers 5 15

hsrp-router2(config-if)# standby 1 track se0/0

Thats it. HSRP configuration is complete. You may test the connectivity to a remote route and see for yourself the redudancy in place.
